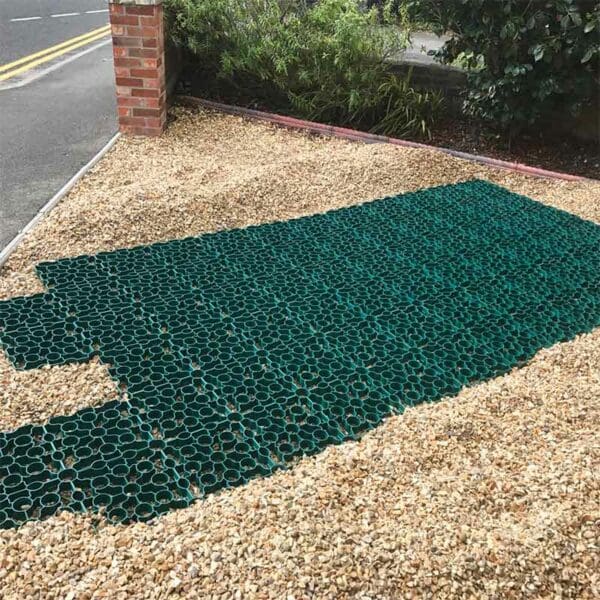

Paving grid allows you to create a quick, strong, permeable parking space, road, driveway and pathway by stabilising the ground.

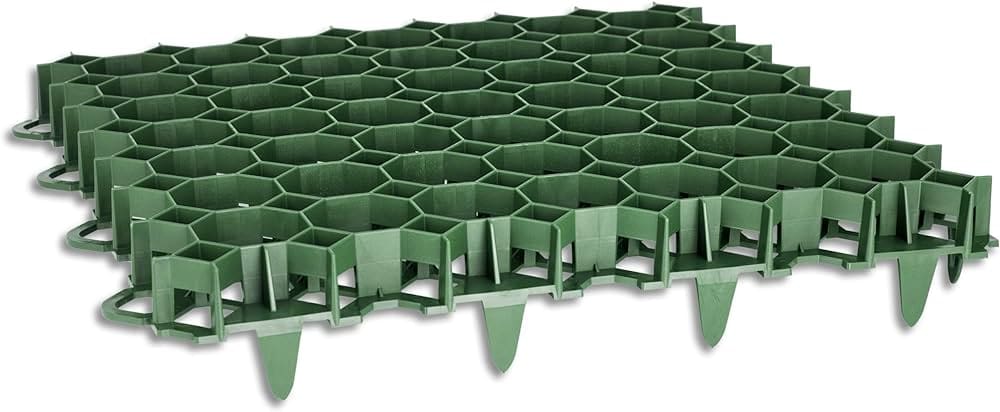

Grid dimensions 500mm x 500mm x 40mm

Colour Green

Grids per m2 4

Gravel size 5-20mm

Fixing type Inter-locking

Benefits of using paving grid include: Water permeable, ideal for good drainage and ease of installation – inter-locking grids allow for quick and easy laying – Once filled with a suitable material, can be driven on with both cars and trucks

Installation:

1: Lay a suitable foundation of 30 – 50mm of sub-base material & level.

2: Lay a suitable weed control membrane

3: Level the area using building sand or very fine compacted gravel, to create a nearly flat surface. Rake smooth before laying the grid.

4: Install the grids, inter-locking the panels to create a firm, level surface. Ensure the geo-textile membrane overlaps the edges by at least 50mm.

5: Fill the grids with gravel, shingle, topsoil or another suitable material. You will need approximately 1 bulk bag per 10 – 12m2

6: Rake the material to fill all of the grids. If possible, use a roller to compact the grid and filler material to prevent movement later on.
